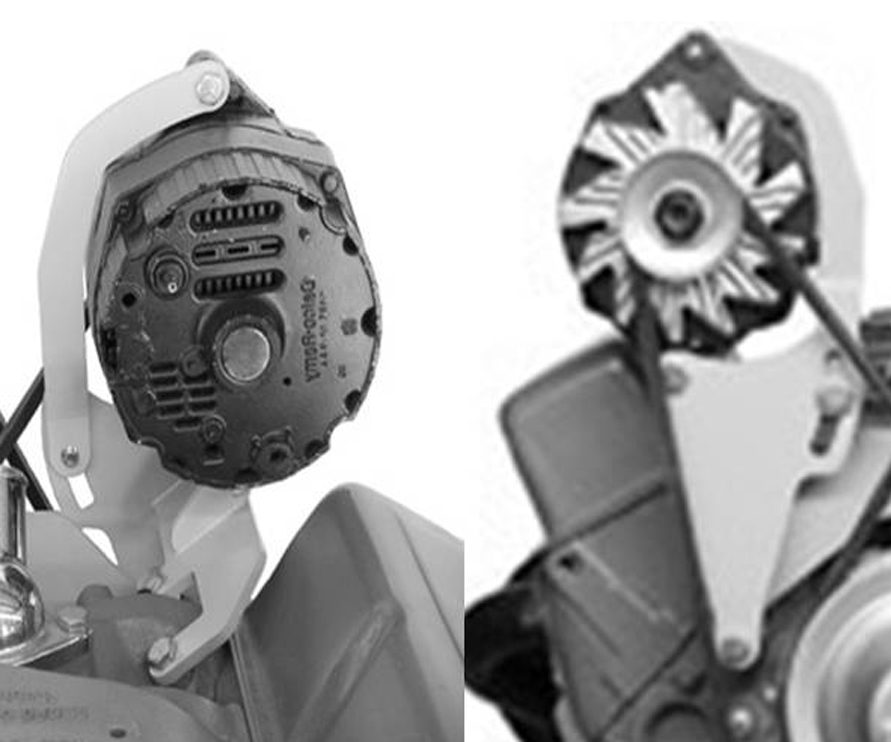

Street Rod Style Alternator High Mount

Alan Grove 200R high mount alternator bracket.

For Chevy small blocks with short water pumps.

Street Rod Style.

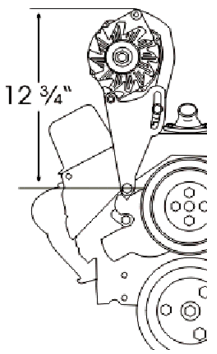

Mounts the alternator high on the passenger side of the engine.

Provides more radiator hose clearance.

Made of heavy non-coated steel.

Kit includes the high mount alternator bracket, necessary hardware, instructions and belt length recommendations.


Bolts to top of water pump and the two front intake bolts.

Will clear tall valve covers.

The alternator bracket is designed to accept the popular G.M. alternators, both internally and externally regulated. These include the 10SI, 12SI, and the newer CS130. On the 12 o'clock alternators, the center to center of the mounting holes must be 6-9/16" for use with these brackets.

TECH NOTE: Chevrolet used short water pumps on all passenger car applications thru 1968 and trucks thru 1972 with the exception of Corvettes. Corvettes always ran short water pumps. Long water pumps are used on most later applications. The short pump fits close to the timing cover while a long pump stands out from the timing cover. A LONG OR SHORT WATER PUMP MAY BE USED ON ANY YEAR CHEVROLET V8 ENGINE. IMPORTANT: Short water pump crank and water pump pulleys must be used with a short pump.

TECH NOTE: Will not work with Vortec or Fast Burn cylinder heads.

Alan Grove 200R Chevy small block high mount alternator bracket ALAN-GROVE-200R$124.97
