MSD 8202 MSD Blaster 2 Ignition coil.
Fits stock round coil holders.
Quicker starting, better fuel economy and higher rpm capability.
Great for vehicles with a distributor that require a remote mounted coil.
TECH NOTE: Will not fit GM HEI distributor equiped vehicles without a distributor cap conversion.
Maximum voltage: 45,000 volts.
Turns ratio 100:1.
Primary resistance .7 ohms.
Secondary resistance 4.5 ohms.
Inductance 8 MH.
Peak current 140 MA.
Spark duration 350 US.
WARRANTY: MSD Ignition warrants its products to be free from defects in material and workmanship under normal use, if properly installed, for a period of one year from the date of purchase. Contact MSD's customer service department for an RMA number before returning an ignition.
MSD 8217 coil wire retainer.
Fits the MSD 8202 coil shown above.
The MSD 8217 coil wire retainer holds the boot securely in the coil.
The lower portion of the retainer snaps around the body of the coil under the flange and is held in place with a nylon tie wrap.
With this combination the coil wire cannot vibrate loose during severe racing conditions.
The MSD 8217 coil wire retainer fits most of the MSD Blaster coils (except the Blaster 3 coil) and fits most aftermarket canister type coils as well.
(Coil not included.)
MSD 8213 MSD coil bracket.
Fits the MDS 8202 coil shown above.
The MSD 8213 coil bracket offers easy, universal mounting for standard size ignition coils up to 2.25" in diameter.
The bracket uses a bolt and nut combination instead of the easily stripped self tapping screw common on other brand brackets.
Chrome coil bracket and cover for MSD 8202 coil shown above.
Chrome plated steel coil cover features universal design to accept most stock or aftermarket "can" style coils.
Includes chrome plated cover and mounting bracket.
Great for firewall mounting of the coil.

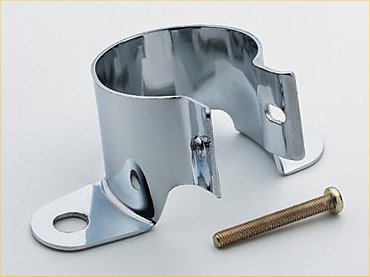

GM coil bracket for the MSD 8202 coil shown above.
This chrome plated bracket makes it easy to mount a high performance coil or remount your stock coil.
OEM vertical mount design.
Mounts the coil to the intake manifold in the stock location.
Ford chrome coil mounting bracket for MSD 8202 coil shown above..
Mounts a can style coil to your Ford intake manifold.
A replacement for the stock coil bracket.
